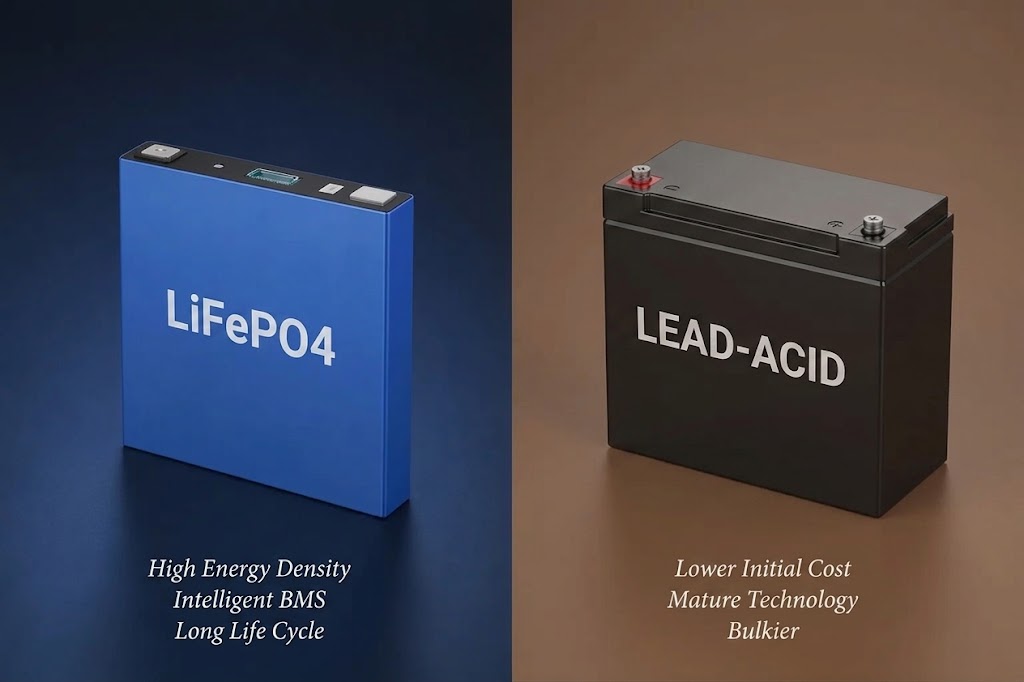

Selecting the right energy storage technology is critical for optimizing operational efficiency and reducing long-term costs in modern industrial applications. While lead-acid batteries have served as the traditional power source for decades, Lithium Iron Phosphate (LiFePO4/LFP) technology has emerged as the superior alternative for material handling, forklifts, and industrial machinery.
This article provides an in-depth technical comparison between LiFePO4 and traditional lead-acid batteries, analyzing key metrics such as cycle life, energy density, charging efficiency, safety, and Total Cost of Ownership (TCO).
Cycle life is one of the most significant performance differentiators between lithium and lead-acid chemistries.
LiFePO4 batteries feature an exceptionally stable crystal structure that minimizes degradation during repetitive charge-discharge cycles. Under standard operating conditions 80% Depth of DischargeDoD, quality Grade A LiFePO4 cells deliver over 4,000 to 6,000+ cycles before capacity drops to 80%.
In contrast, traditional flooded or AGM lead-acid batteries typically yield only 500 to 1,500 cycles under similar usage, requiring frequent battery replacements over a equipment's operational lifespan.
Technical Parameter | LiFePO4 Battery Pack | Lead-Acid Battery (AGM/Flooded) |
Cycle Life (80%DOD) | 4,000 - 6,000+Cycles | 500 - 1,500Cycles |
Service Lifespan | 10 - 15 Years | 2 - 5 Years |
Usable Depth of Discharge (DoD) | 80%- 100% | 50% (Recommended) |
Daily Maintenance | Zero Maintenance (Sealed) | Regular Water Topping & Equalization |
Energy density directly impacts the total weight and footprint of industrial equipment battery compartments.
Gravimetric Energy Density: LiFePO4 chemistry provides an energy density of 120 - 160Wh/kg, whereas lead-acid achieves only 30 - 50Wh/kg. Consequently, an LFP battery pack is roughly 60% lighter than a lead-acid counterpart of equivalent capacity.
Usable Capacity (DoD): Lead-acid batteries suffer severe voltage drops and sulfation if discharged beyond 50% DoD. LiFePO4 batteries maintain a stable flat discharge curve and can safely deliver up to 80% - 90%+ of their nominal capacity without damaging cell chemistry.
Charging dynamics significantly affect fleet uptime and labor productivity in logistics and manufacturing environments.
Opportunity Charging: LiFePO4 batteries support fast opportunity charging during operator breaks without memory effect or sulfation issues. A full charge is typically achieved within 1 to 2 hours.
Lead-Acid Restraints: Lead-acid units require 8 to 10 hours of slow charging, followed by an additional 8 hours of cool-down time. This necessitates extra battery swaps and dedicated battery rooms for multi-shift operations.
Energy Efficiency: LFP systems demonstrate a round-trip charge/discharge efficiency exceeding 95%, compared to 75% - 80% for lead-acid systems.
Performance Metric | LiFePO4 System | Lead-Acid System |
Charge Time | 1 - 2 Hours | 8 - 10 Hours |
Cool-Down Period | None | 8 Hours Required |
Round-Trip Efficiency | > 95% | 75% - 80% |
Opportunity Charging | Supported | Not Recommended |

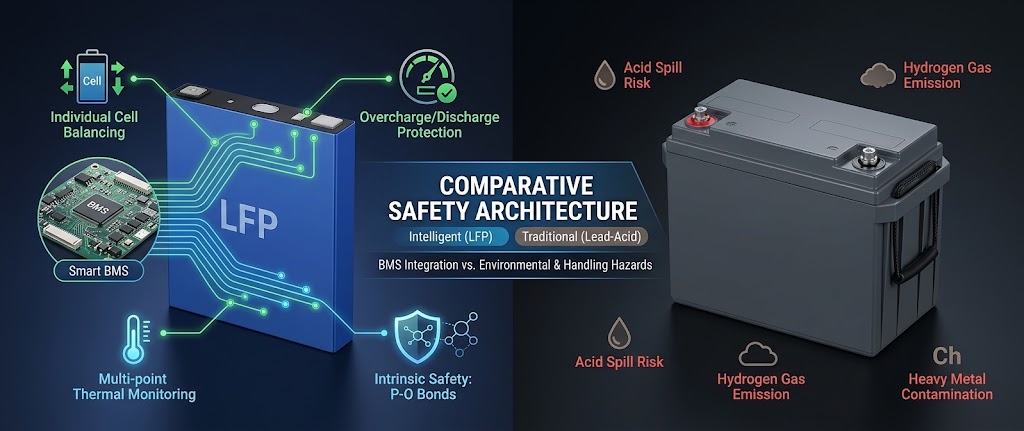

Safety remains a top priority when deploying high-capacity power units in commercial environments.
LiFePO4 is inherently the safest lithium-ion chemistry due to its strong covalent P-O bonds, which resist thermal runaway even under high temperatures or physical damage. Furthermore, industrial LiFePO4 packs are integrated with an intelligent Battery Management System (BMS) that continuously monitors:
Individual cell voltage and current balancing
Overcharge, over-discharge, and short-circuit protection
Multi-point thermal monitoring
Lead-acid batteries present operational safety hazards, including acid spills, hydrogen gas emissions during charging, and heavy metal contamination.
While the initial purchase price of a LiFePO4 battery pack is higher than a lead-acid battery, LFP yields a substantially lower Total Cost of Ownership (TCO) over a 5-year operating window.
Total Cost of Ownership (TCO) = Initial Capital Outlay + Energy Costs + Maintenance Costs + Replacement Costs
Reduced Replacement Costs: One LiFePO4 pack outlasts 3 to 4 sets of lead-acid batteries.
Zero Maintenance Expenses: Eliminates labor costs associated with watering, acid leak cleanup, and terminal corrosion treatment.
Electricity Savings: Higher round-trip efficiency reduces daily grid energy consumption by up to 15% - 20%.
Q1: Can LiFePO4 batteries directly replace lead-acid batteries in electric forklifts?
Yes. LiFePO4 battery packs are engineered with customized metal enclosures and counterweights to seamlessly drop into existing lead-acid battery compartments while maintaining equipment stability.
Q2: How does temperature affect LiFePO4 vs. Lead-Acid performance?
LiFePO4 batteries operate efficiently between -20 °Cand 60 °C. For cold storage environments below freezing, built-in automatic self-heating modules can be integrated to ensure normal charging performance.
Q3: Are LiFePO4 batteries environmentally friendly?
Yes. LiFePO4 contains no heavy toxic metals like lead or cadmium, complies fully with RoHS regulations, and generates lower overall carbon emissions over its operational lifecycle.
