Low Efficiency & Long Downtime: Requires 8-12 hours to fully charge plus cooling time. Multi-shift operations demand 2-3 battery sets per truck, causing frequent battery swapping and lost productivity.
High Total Cost of Ownership (TCO): Short lifespan (1.5-2 years), high replacement frequency, and continuous maintenance costs (acid topping, watering, and ventilation infrastructure).
Bulky & Space-Consuming: Low energy density results in oversized battery boxes and restricts modern compact forklift designs. Dedicated charging rooms take up valuable warehouse space.
Lack of Smart Integration: No standard CAN communication interface, creating an operational "black box" that prevents fleet managers from tracking battery health (SOH/SOC) or conducting predictive maintenance.
For the vast existing forklift market, Qianhang provides more than just a battery replacement—we deliver a comprehensive power system upgrade solution. Driven by precision, safety, and compatibility, our hardware retrofit solution ensures maximum return on investment for our clients at the lowest possible cost.

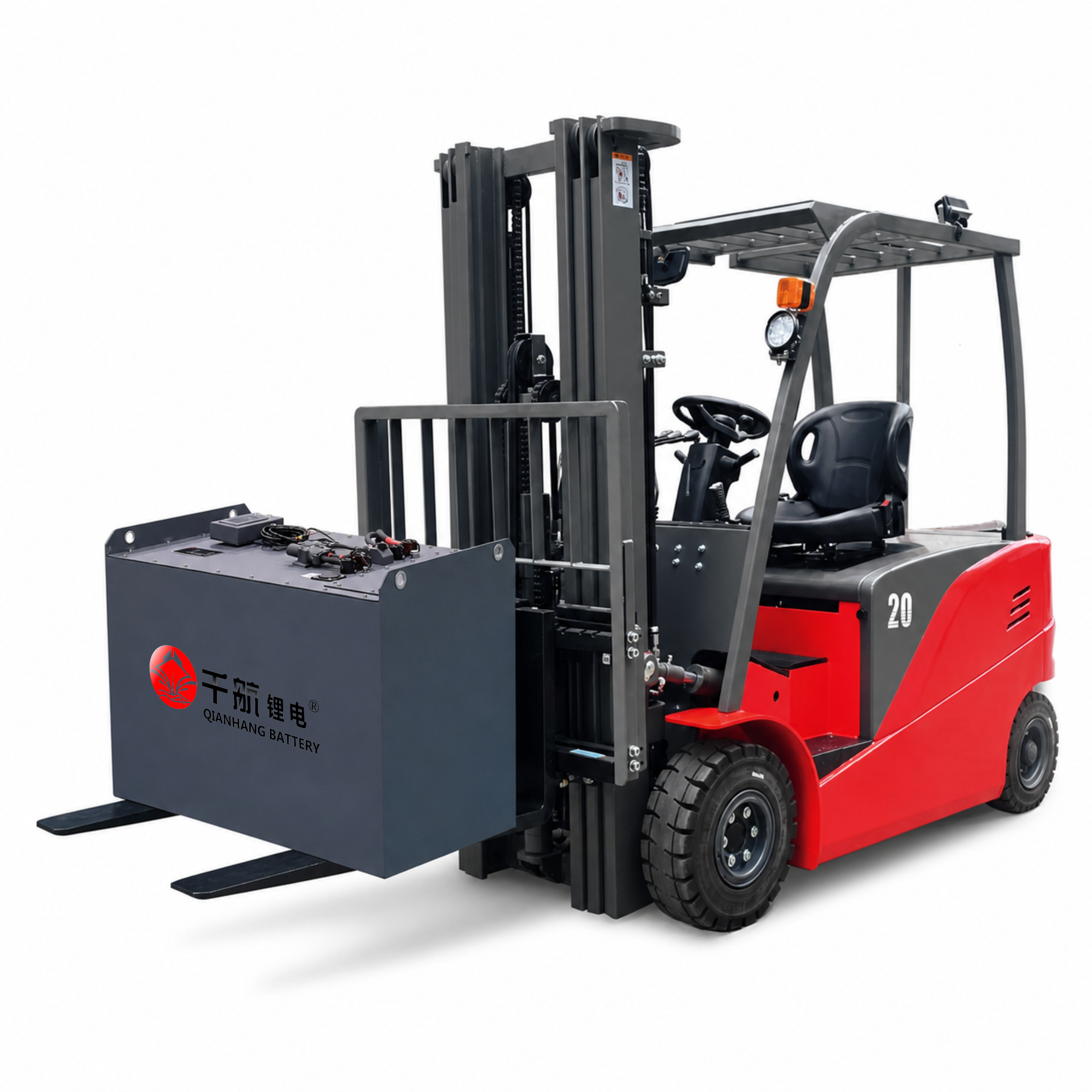

Lead-Acid to Lithium Battery Retrofit Solution
Qianhang forklift lithium batteries adopt a flexible design philosophy of "Custom Voltage, Capacity, and Dimensions on Demand," guaranteeing seamless compatibility with original machinery.
"Precision Matching Design"

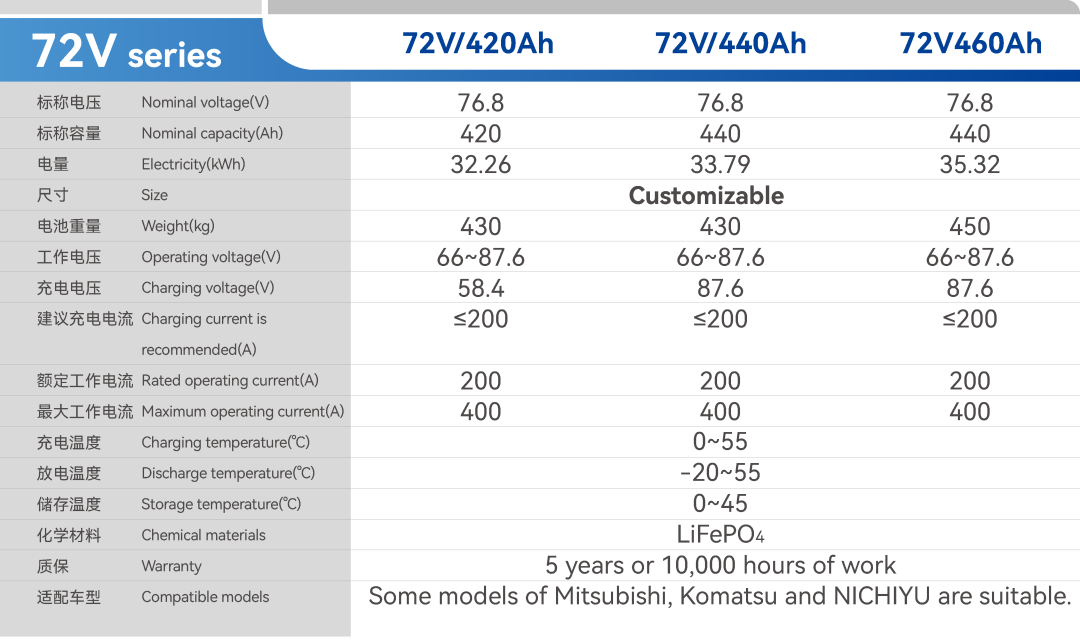

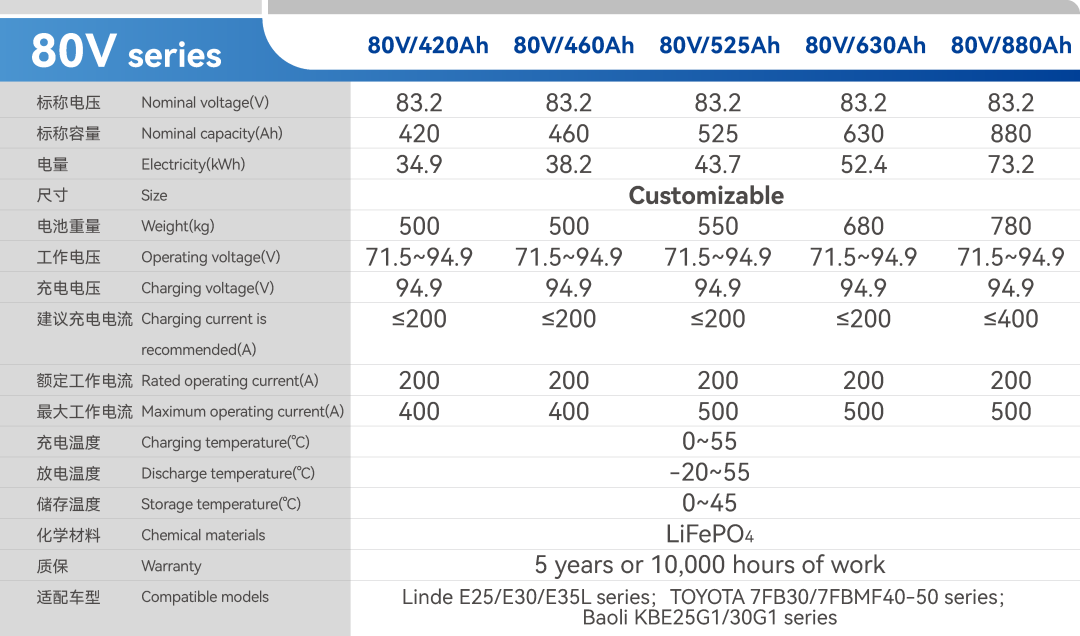

Full Voltage Platform Coverage: Providing a complete range of voltage platforms including 24V, 48V, 72V, and 80V, perfectly matching all types and models of forklifts.
Flexible Capacity Configuration: Capacity ranging from 210Ah to 880Ah, meeting the endurance requirements of various working conditions.

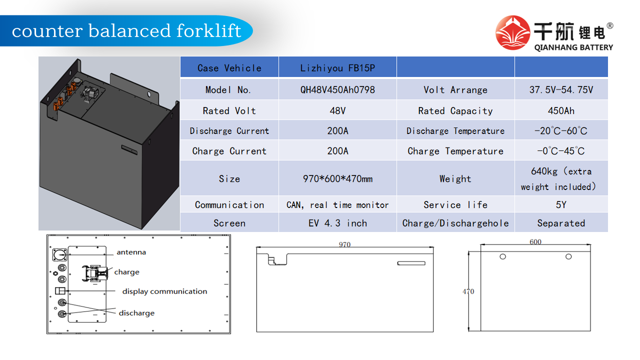

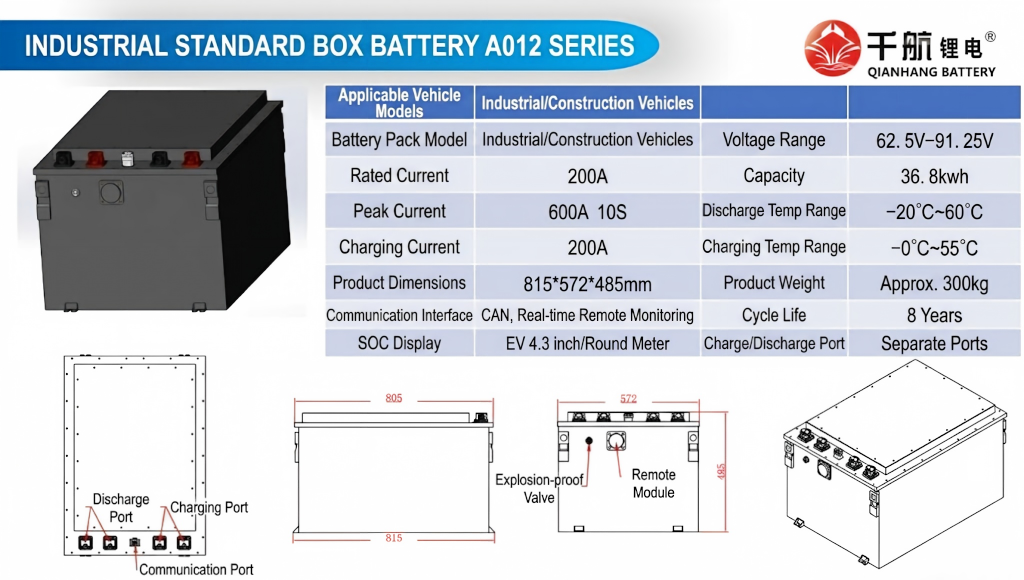

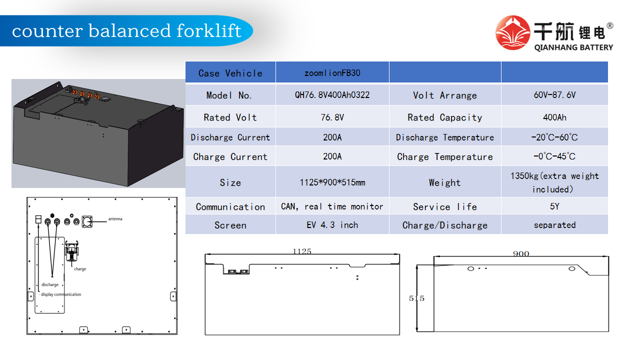

Precision Dimension Fitting: Adopting a "customized on demand" design philosophy to ensure a perfect fit between the battery pack and the original battery compartment.
Smart BMS System
Multiple Safety Protections: Real-time monitoring and protection against overcharge, overdischarge, overcurrent, overtemperature, and short circuit risks.
Precise SOC Calculation: SOC estimation accuracy within $\pm3\%$, ensuring reliable and precise battery status display.
Smart Balancing Management: Automatically maintains cell consistency to extend the overall lifespan of the battery pack.
CAN Bus Communication: Seamlessly integrates with the vehicle control system (MCU) for optimal system synergy.
Wide Temperature Adaptability: Supports a discharge temperature range of -20°C to 55°C to meet requirements across diverse operating environments.
Charging Strategy Upgrade
Fast Charging Support: Supports high-current charging, with maximum charging current reaching up to 400A (for 80V series).
Smart Charging Management: Precise control of charging voltage ensures safe and highly efficient charging.
Opportunity Charging Compatible: Supports opportunistic top-ups during work breaks, shift intervals, and other short downtime periods.
Charging Temperature Protection: Charging temperature is strictly controlled within 0°C to 55°C to guarantee safety.
Convenient Interface Design: Features a pluggable terminal design, allowing charge/discharge connectors to be replaced without disassembling the enclosure.
Detachable Counterweight Design
Flexible Counterweight Adjustment: Integrated counterweight design for easy assembly and disassembly, meeting the stability requirements of different vehicle models.
Cost Optimization: Counterweights are interchangeable across the same vehicle model, significantly reducing counterweight modification costs.
Safety Assurance: Scientifically calculated counterweighting ensures vehicle operational stability and handling safety.

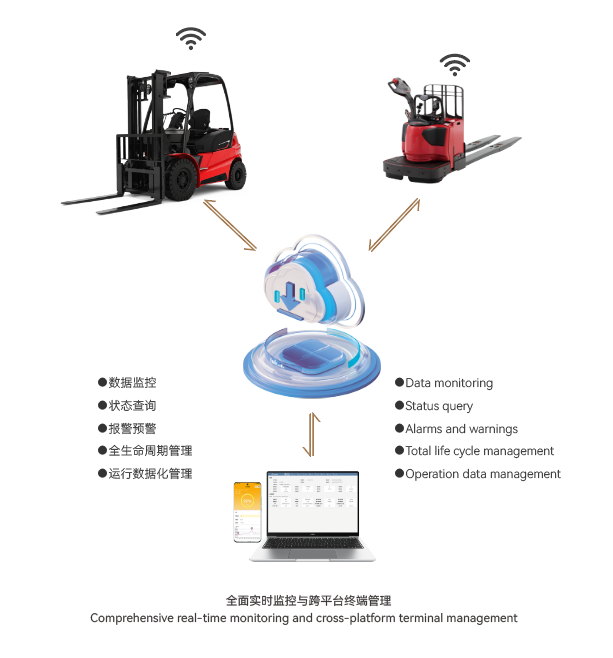

Qianhang builds a brand-new safety and management architecture for forklift lithium batteries by combining its self-developed EMS (Energy Management System) with cloud computing.
Interconnected: Real-time bi-directional connection between terminals and the cloud keeps lithium batteries "always online," enabling real-time data monitoring, status queries, and early warnings.
Intelligent: Big-data-driven cloud-collaborative management enables lifecycle management and data-driven operations—delivering higher safety, precision, and efficiency.
Innovative: Innovative cloud platform applications spanning the product lifecycle enhance user efficiency across every workflow.
"Safe & Reliable: Prevention Above All"
Cell Selection: Built with Lithium Iron Phosphate ($\text{LiFePO}_4$) cells known for their exceptional thermal stability.
Comprehensive BMS Protection: Implements multi-layer protection against overcharge, overdischarge, overcurrent, overtemperature, and short circuits.
Hardware & Structural Safety: Features a pluggable terminal design for charge/discharge wiring, enabling connector replacement without disassembling the enclosure for maximum convenience and safety.
"Ultra-Long Lifespan & Ultra-Low Total Cost of Ownership (TCO)"
Long Cycle Life: Premium Lithium Iron Phosphate ($\text{LiFePO}_4$) chemistry ensures an exceptionally long cycle life.
Warranty Policy: Backed by an extended warranty of 5 years or 10,000 working hours.
Total Cost of Ownership: Significantly lowers full-lifecycle costs thanks to long service life, zero maintenance, and high energy efficiency.
"High-Efficiency Operations for Uninterrupted Workflows"
Fast Charging: Supports high-current charging with a safe charging temperature range of 0°C to 55°C.
Wide Operating Temperature Range: Operates across a discharge temperature range of -20°C to 55°C for superior environmental adaptability.
Maintenance-Free: Requires zero watering and no equalization charging, completely liberating maintenance labor.
"Smart Management Empowering Digital Logistics"
Through the cloud platform, fleet managers can remotely monitor battery status in real time.
Forklift electrification has become an inevitable choice for enterprises to enhance operational efficiency, reduce total costs, and achieve green transition.
Leveraging our proprietary BMS, intelligent thermal management, remote O&M platform, and multi-model adaptability, Qianhang delivers safe, reliable, and cost-effective lithium battery solutions to our clients.
